For your convenience, you can either watch the installation video below or follow the detailed step-by-step written instructions beneath the video. Both options will guide you through the process to ensure a smooth installation of your Guard.
What's in the box?
Assembly Parts
Weather Strip
Brush Strip
Screwdriver
Five steps to assemble Guard

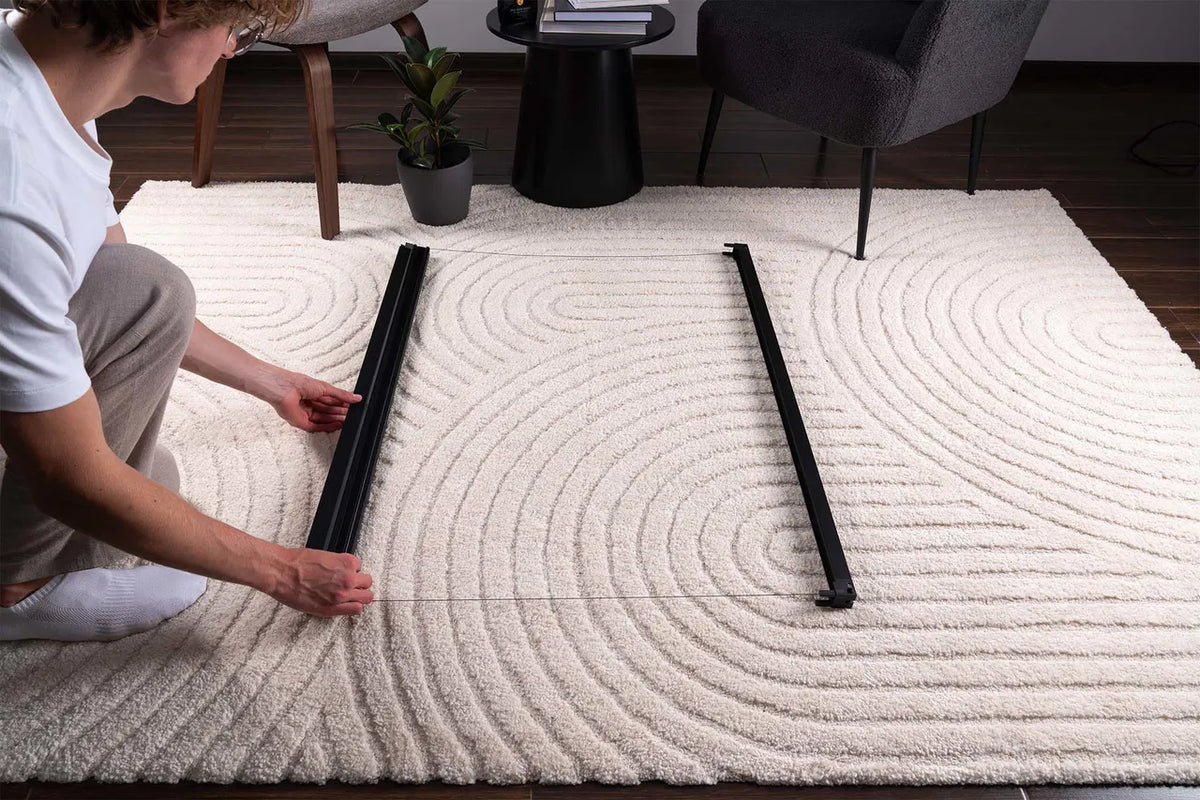

Step 1: Lay Out the Side Frames
Unpack the side frames and place them on a clean, flat surface, parallel to each other with their inner channels facing inward for assembly.

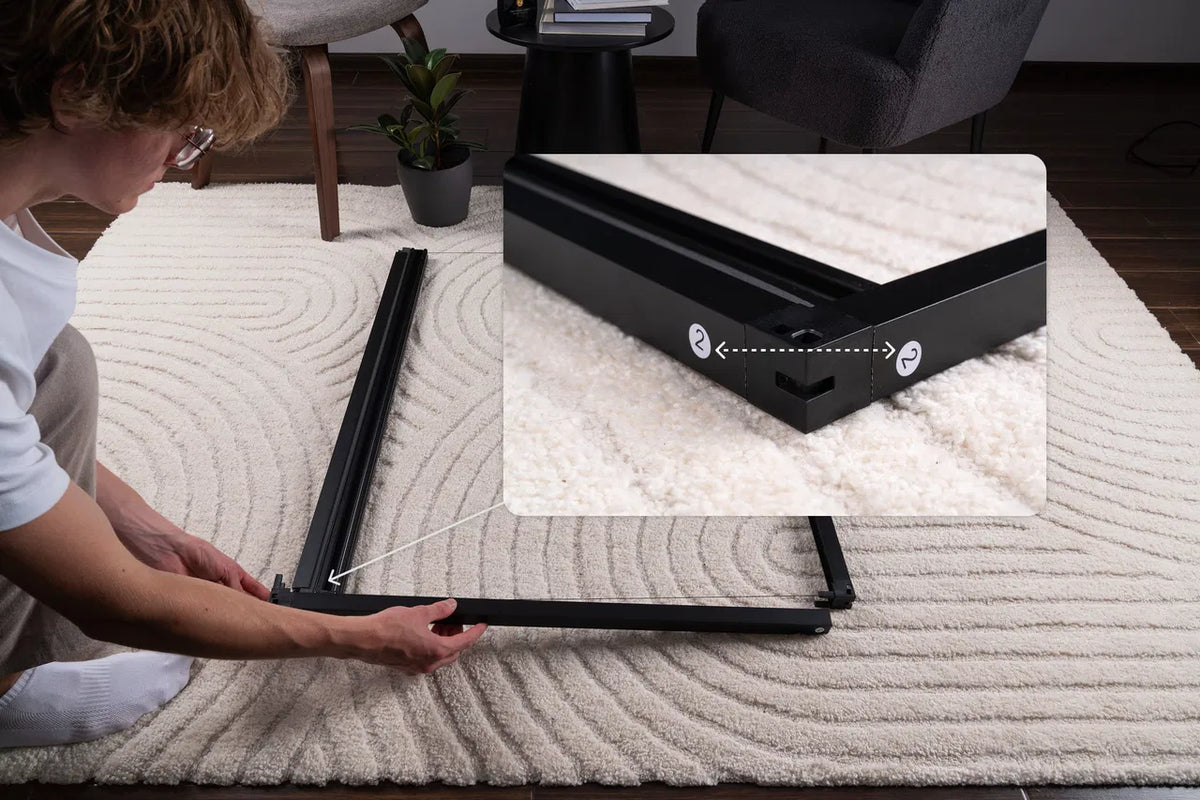

Step 2: Position the Top and Bottom Frames
Place the top and bottom frames parallel to each other, and verify that the numbered labels on the adjoining ends match.

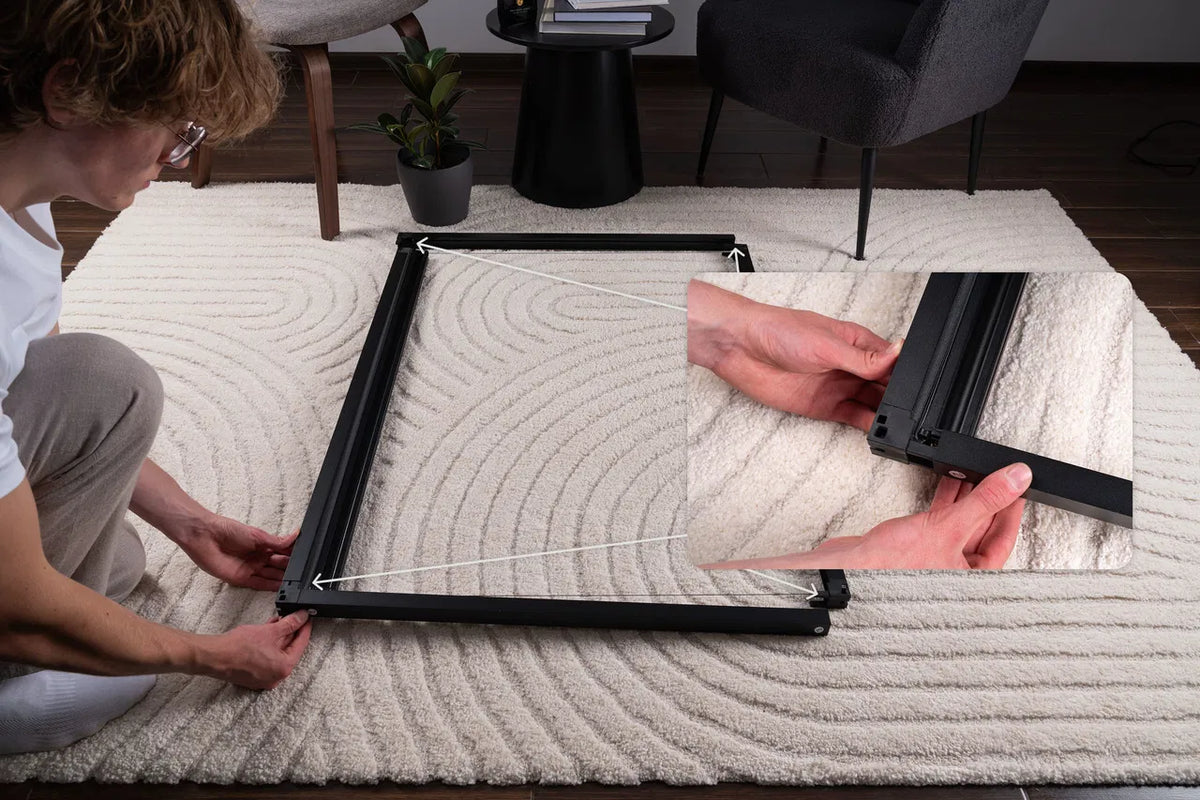

Step 3: Connect the Frames
Connect all of the frames together by connecting the fabric and the side frame with the top and bottom frames.
After connecting the frames, test the blinds by closing them to see if they latch properly.

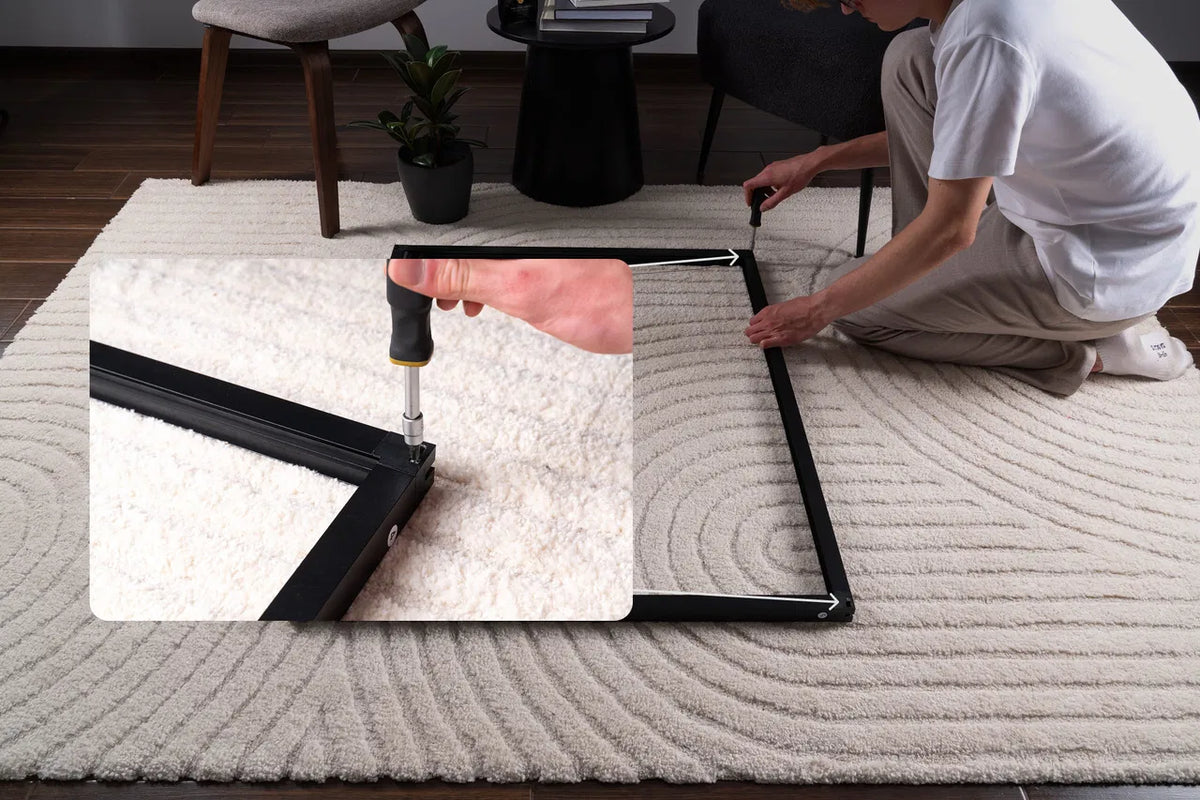

Step 4: Tighten the Cords
(Skip this step if your blinds latched properly in Step 3)
Using the included screwdriver, turn the two screws in either direction until the internal cords tighten. Make sure the cords are tightened evenly on both sides.
Note: Higher cord tension will require more effort to close the blinds - set it to your preference, but if the cords are too loose the blinds may not fully close and can pop back.

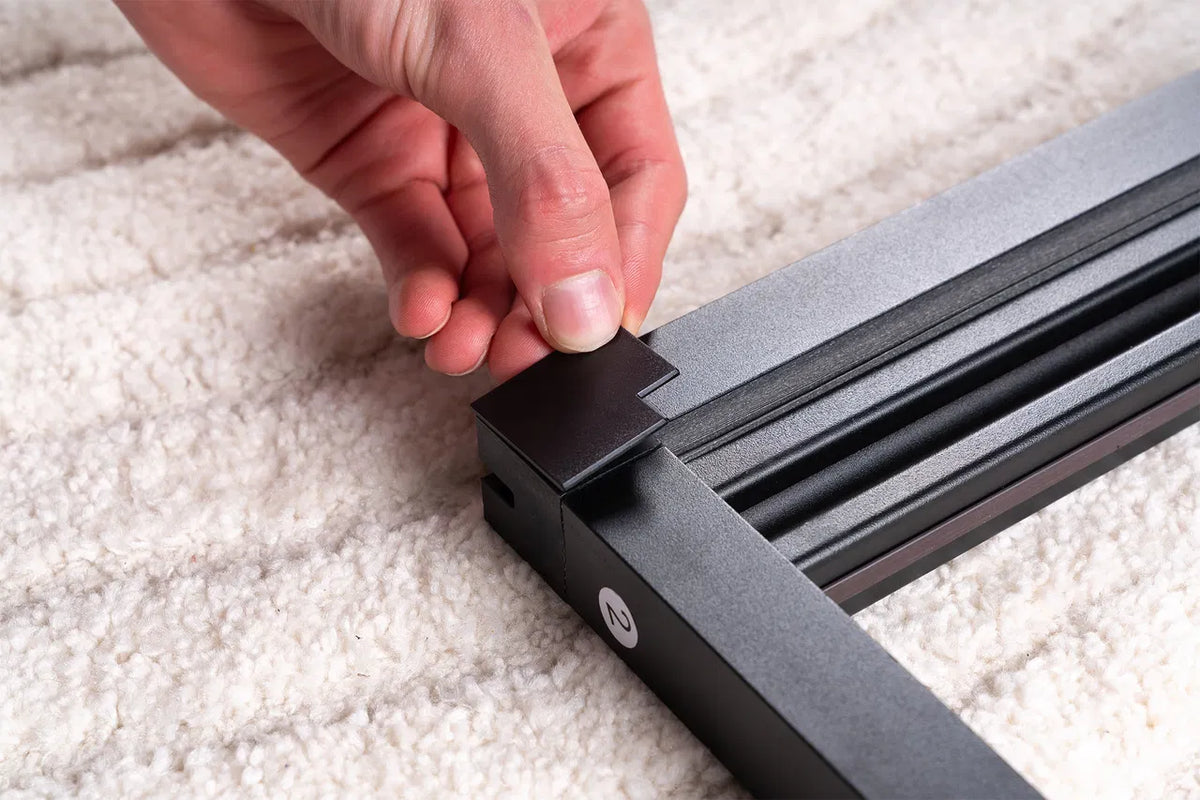

Step 5: Insert the Corner Caps
Press-fit the 8 included corner caps onto all frame corners - 4 on the front side, 4 on the back side. Ensure every cap sits perfectly flush to protect the edges and to ensure no light leaks through the corners.
Six steps to install Guard

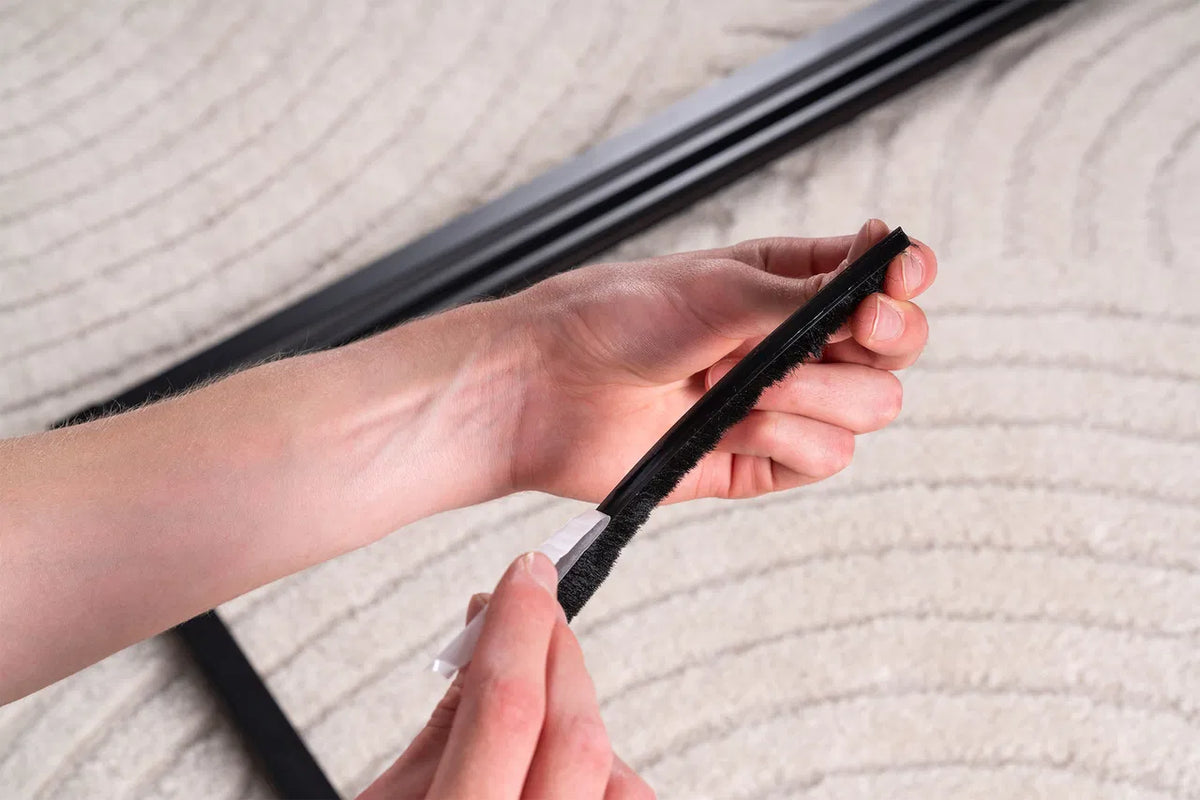

Step 1: Peel back the brush strip backing
Peel off a small part of the protective backing from the brush strip - just enough to get started. You'll keep peeling as you apply it.

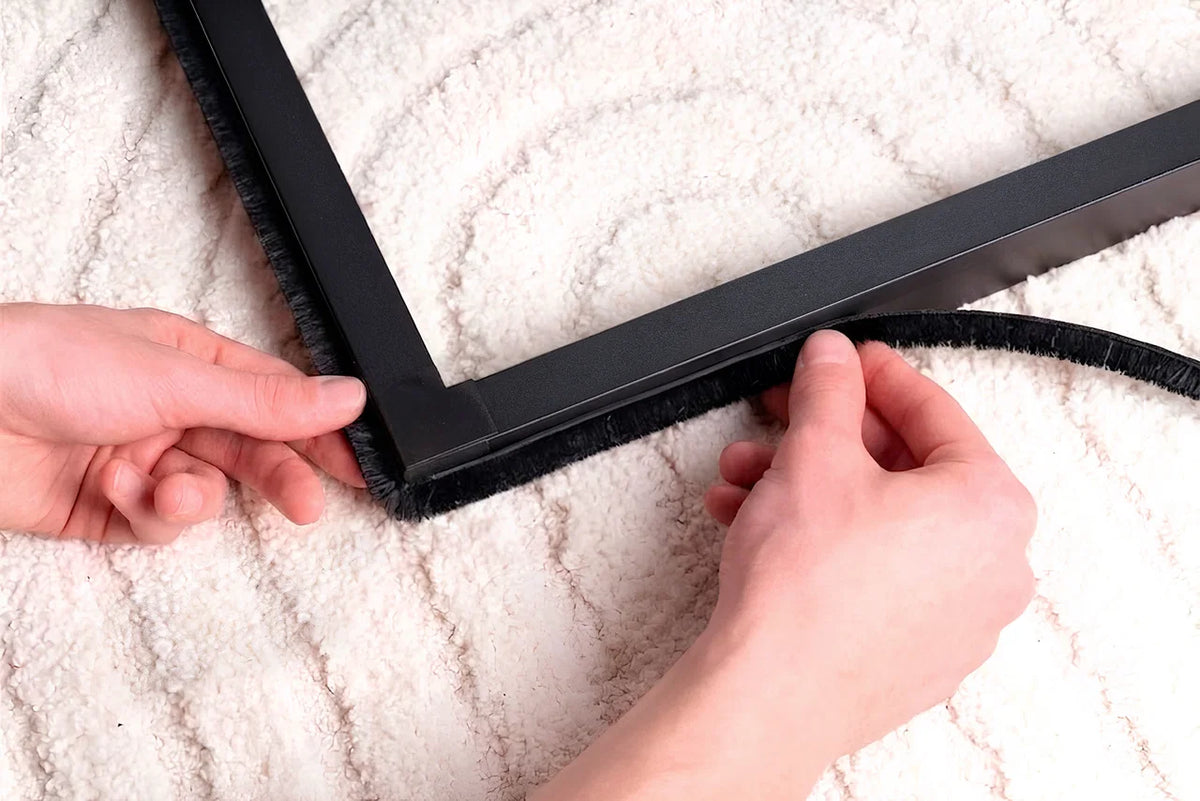

Step 2: Apply the brush strip
Press the brush strip down as close to the back side of the frame as possible, leaving free space above it for the weather strip. Peel back more of the backing as you work your way along each side. Cut away any excess at the end, then repeat on all four sides.
Note: At every corner, press the strip so it forms a clean 90° angle.

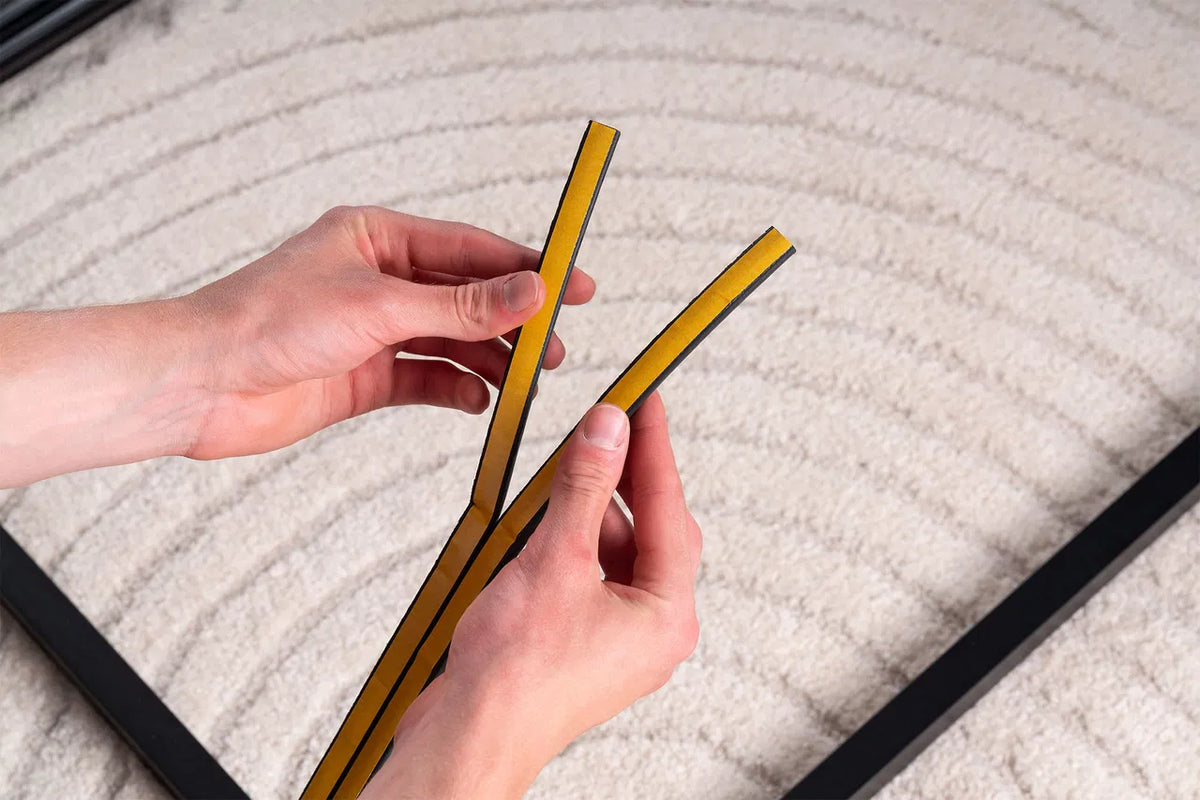

Step 3: Split the weather strip
Split the provided weather strip into two equal parts.

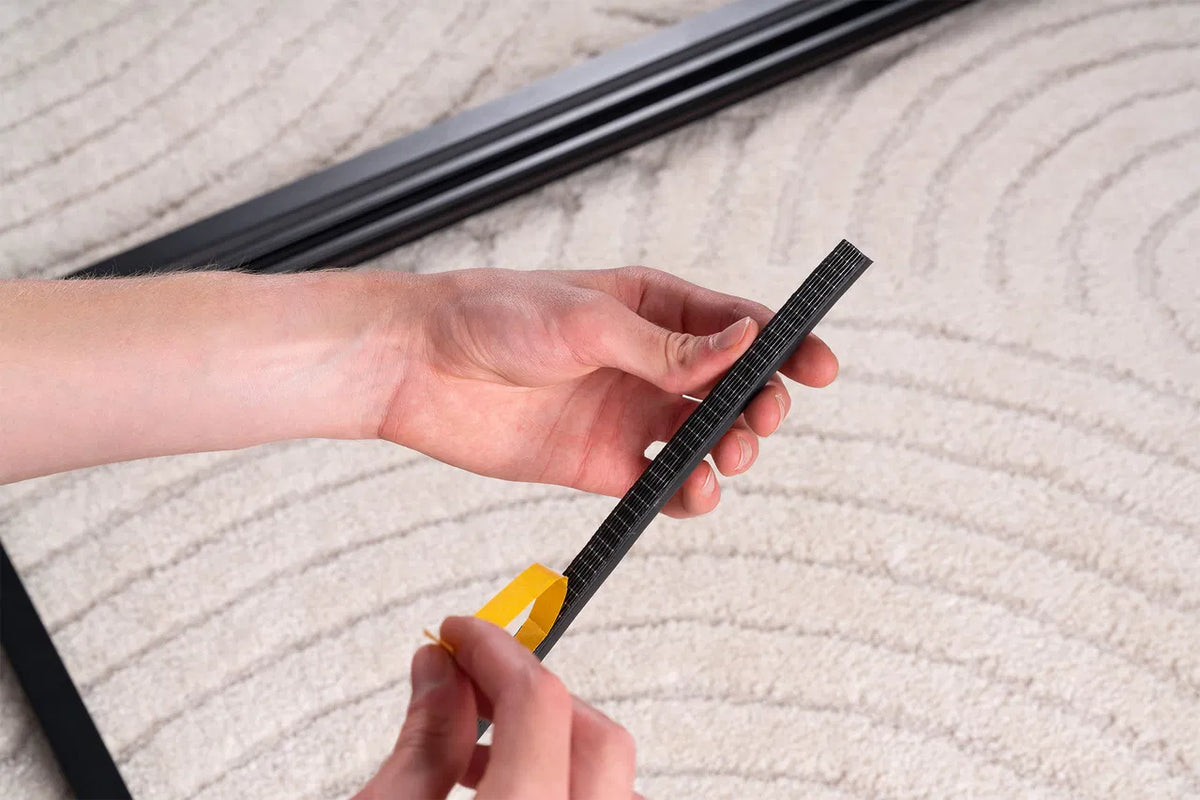

Step 4: Peel back the weather strip backing
Peel a small length of the protective backing off one end of the weather strip to begin. You'll peel away the rest as you go.

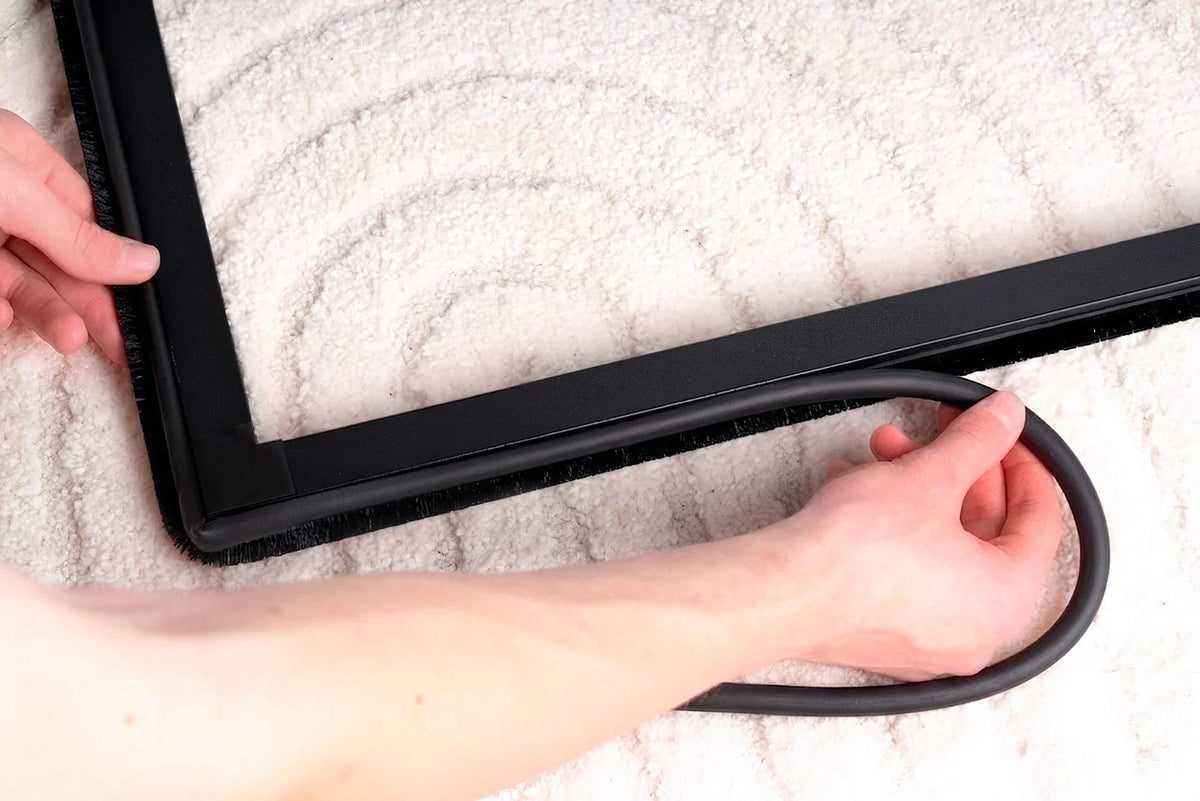

Step 5: Apply the Weather Strip
Apply the weather strip directly above the brush strip. Continue peeling the backing as you go, and cut away any excess at the end. Cover all four sides without gaps.

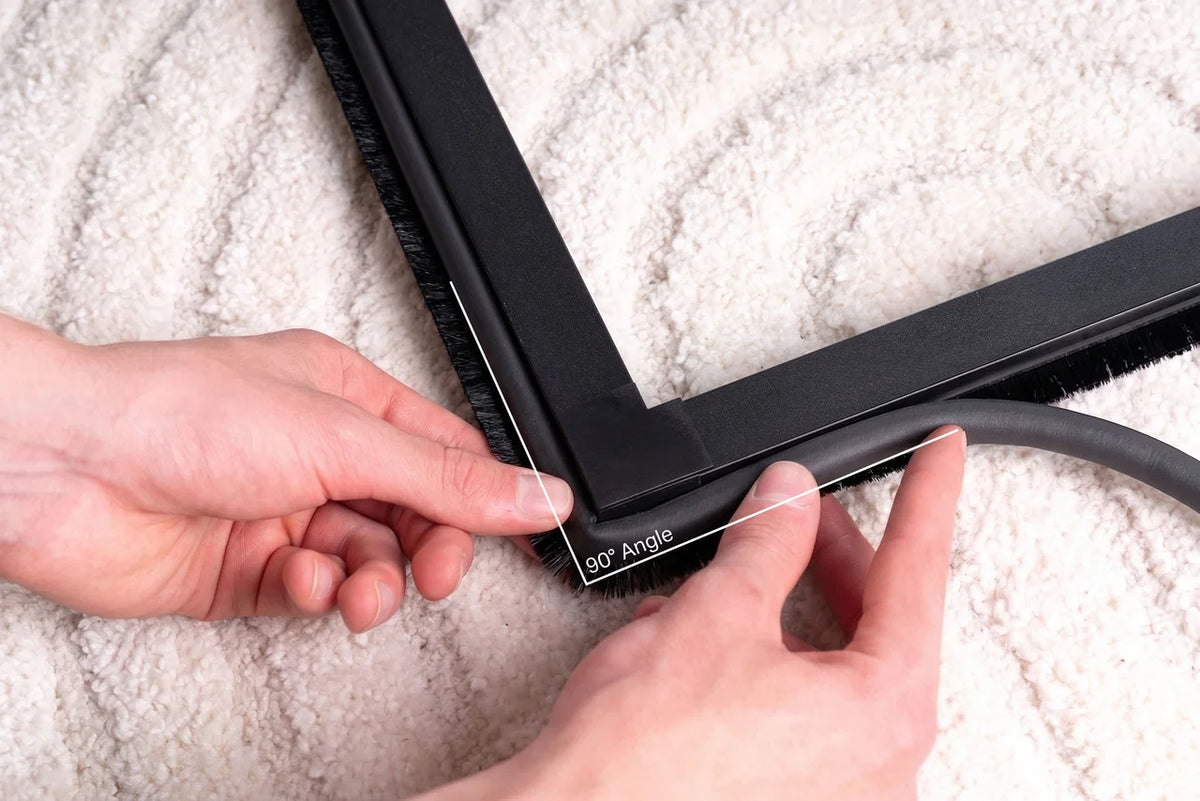

Form the Corners
When applying the weather strip, do not stretch it across corners. Keep it relaxed and fully seated, forming a clean 90-degree angle to match the frame. If pulled too tightly, it may create small gaps in the corners where light can leak through.

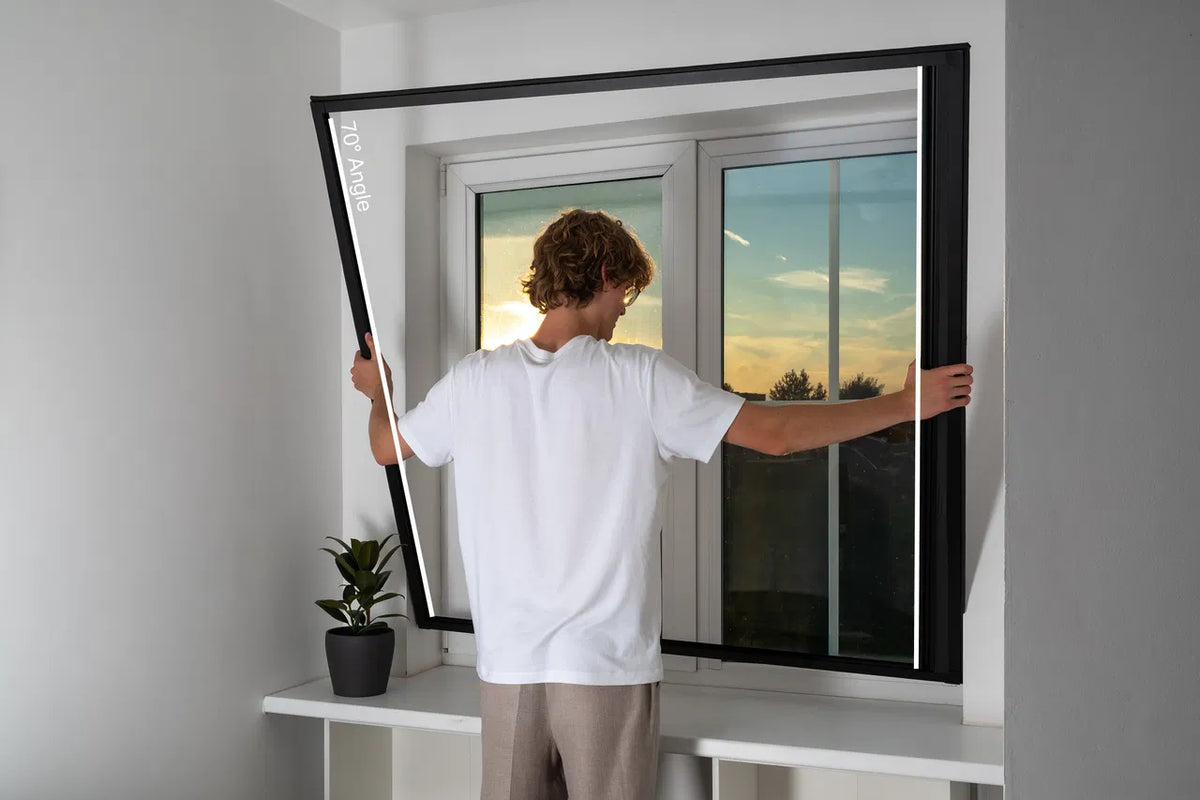

Step 6: Insert and Test Guard
Insert the blinds into your window recess at a 70-degree angle. Start by guiding the bottom of the blinds into place, pushing it firmly to the bottom first, then finish by pushing the top of the blinds into position. Once inserted, test the blinds by opening and closing them.
FAQs
Guard features a unique track system that eliminates gaps between the blinds and the window frame to ensure total darkness. The dual-layered honeycomb fabric combines non-woven polyester with a reflective thermal barrier to block light, insulate against heat, and reduce noise.
Guard is designed to fit most standard window types, but there are a few considerations.
Guard won't fit windows that are not square. Additionally, the blinds require at least 1.18 inches of unobstructed recess space for proper installation. If your window doesn't meet these criteria, Guard may not be suitable for you.
Here's a list of compatible and incompatible window types to help you determine if our product is the right fit for your home:
- European Windows
- Tilt-and-Turn Windows
- Fixed Windows
- Sliding Windows
- Casement Windows
- Hung Windows
- Sash Windows
- Bay Windows
- Awning Windows
- Skylights
- Arched windows
To ensure correct measurements, please read our Measuring Guide. It's important that your measurements are accurate and precise, as they are crucial for the blinds to fit properly. Incorrect measurements will result in the blinds not fitting your windows.
Guard is low-maintenance. The non-woven polyester fabric resists dust and stains, requiring only occasional cleaning with a damp cloth. No special cleaners or treatments are necessary.
The interior of the Guard matches your fabric choice, while the exterior is always Quartz to reflect light. For example, if you select Graphite, the interior side will be Graphite, but the exterior will remain Quartz. This design ensures a uniform appearance from the outside and is intended to reflect light.
To install Guard, follow our step-by-step instructions in our Installation Guide.
